IP65 Rated 5kg Capacity Electronic Alloy Steel Micro Kitchen Scale Load Cell Half Bridge for Industrial Applications

Hunan Jinlian Cloud Information Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

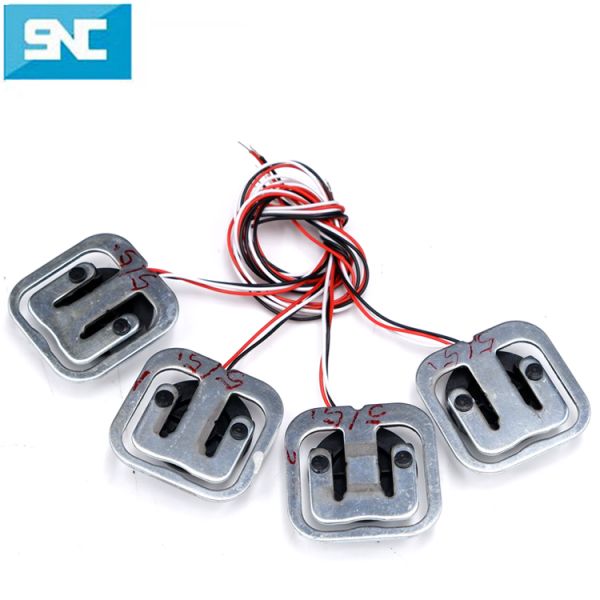

IP65 Rated 5kg Capacity Electronic Alloy Steel Micro Kitchen Scale Load Cell Half Bridge for Industrial Applications

Series : half bridge load cell

Features : flat thin load cell 3kg 5kg

Mounting Type : screw installation

Description : load cell kit 3kg 5kg, Load Cell

Model Number : SC928NB

Type : Load Cell, half bridge, full bridge

Place of Origin : Guangdong, China

Brand Name : SNC

Use : weigh

Theory : Resistance Sensor

Output : Analog SENSOR

Model : SC928NB

Material : Alloy steel

Capacity : 3kg, 5kg

Item : baby scales load cell

use temperature : -10-+60℃

output resistance : 1000±10Ω

Excitation voltage : 5~10VDC

IP grade : IP65

Application : bathroom scale, kitchen scale,body scale, baby scale, post scale

MOQ : 10 sets

Price : $2.20/sets 10-49 sets

Contact Now

Cheap Electronic Alloy Steel Micro Kitchen Scale Load Cell 3Kg 5Kg

Product Description

IP65 Rated 5kg Capacity Electronic Alloy Steel Micro Kitchen Scale Load Cell Half Bridge for Industrial ApplicationsIP65 Rated 5kg Capacity Electronic Alloy Steel Micro Kitchen Scale Load Cell Half Bridge for Industrial ApplicationsIP65 Rated 5kg Capacity Electronic Alloy Steel Micro Kitchen Scale Load Cell Half Bridge for Industrial Applications

Parameters

Capacity 3kg,5kg
Rated output 0.75 /1.2± 0.15mV/V
Creep ±0.1 %F·S/3min
Non-linearity ±0.05%F·S
hysteresis error ±0.05 %F·S
Repeatability ±0.05%F·S
Zero output ±0.5 mV/V
Temp. effect on sensitivity 0.2%F·S/10ºC
Temp. effect on zero 0.1%F·S/10ºC
Input resistance 1000 ± 10 Ω
Output resistance 1000 ± 10 Ω
Insulation resistance ≥ 2000 MΩ(100VDC)
Operating temp. range -10~+40ºC
Excitation voltage 3~10 VDC
Ultimate overload 150%F·S
Load cell material Steel
Connecting cable Φ0.8x220mm
Unit weight 18g/set
Package 200 sets per carton
Wiring: W: White R: Red B: Black E+: Excitation + S+: Signal + E-: Excitation - S-: Signal -

IP65 Rated 5kg Capacity Electronic Alloy Steel Micro Kitchen Scale Load Cell Half Bridge for Industrial Applications

Load cell Accessorie

IP65 Rated 5kg Capacity Electronic Alloy Steel Micro Kitchen Scale Load Cell Half Bridge for Industrial Applications

IP65 Rated 5kg Capacity Electronic Alloy Steel Micro Kitchen Scale Load Cell Half Bridge for Industrial Applications

Related Products

IP65 Rated 5kg Capacity Electronic Alloy Steel Micro Kitchen Scale Load Cell Half Bridge for Industrial Applications

Packaging & Shipping

IP65 Rated 5kg Capacity Electronic Alloy Steel Micro Kitchen Scale Load Cell Half Bridge for Industrial Applications

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

IP65 Rated 5kg Capacity Electronic Alloy Steel Micro Kitchen Scale Load Cell Half Bridge for Industrial ApplicationsIP65 Rated 5kg Capacity Electronic Alloy Steel Micro Kitchen Scale Load Cell Half Bridge for Industrial Applications

Why Choose Us

IP65 Rated 5kg Capacity Electronic Alloy Steel Micro Kitchen Scale Load Cell Half Bridge for Industrial Applications

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
