Product Description
1, Basic technical parameters:
Size: Panel Mount (A): 160x80x170mm
Power supply: 220VAC, Power consumption: less than 15W
Temperature: -10℃~70℃, Humidity: 0~90%RH, non-condensate.
Measurement resolution: torque meter itself support resolution 1/1000000, but the LED display is limited by it’s 5 digit display,
can only support 1/120000.
Measuring speed: 25 times per second
Display range:
Torque range: -99999-99999 N.m, Torque display: only absolute number: 0-99999N.m,
Speed display: 0-99999, decimal position adjustable
Power consumption: 0-99999, decimal position adjustable
Pulse input signal: all kinds of output sensor signal, like NPN, PNP, OC, switches and rotary encoder.
Measurement Frequency; Speed pulse input 0.3Hz~20KHz
Torque pulse input, 5KHz~15KHz, can extend to 1HZ~60KHZ
Refresh frequency measurement: 30 times / second.
Standard transmitter output
Optoelectronic isolation
Two 4mA~20mA DC current output, Output resolution ratio: 1/4000;error less than ±0.2%, F.S, loading capacity: less than 600Ω
External Power Supply: ±15VDC or 24VDCoptional, loading capacity more than 300mA
Serial communication port as standard configuration
√ Optoelectronic isolation
√ RS232 or RS485 optional, default setting is RS232.
Serial port printing function as optional, for connecting standard serial port printer, support Chinese and English if necessary. Printing format is adjustable as needed.

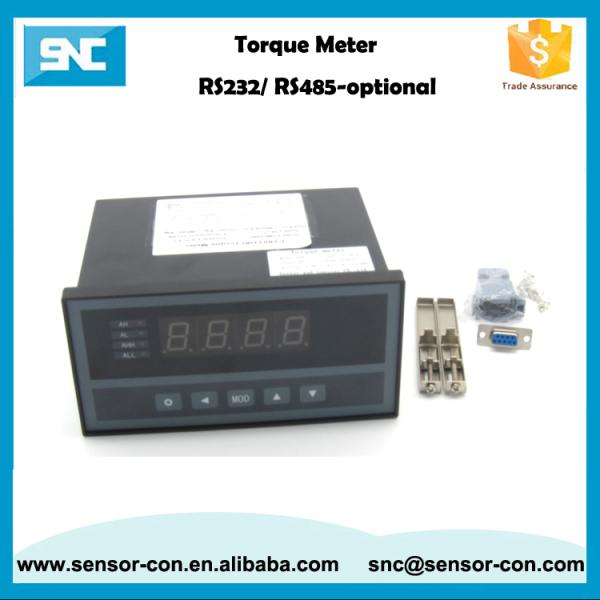

Front panel
Back panel
Company Information
Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.
Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.
FAQ
1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.
2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.
3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.
4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.
5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments
before shipping to our clients.
6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
